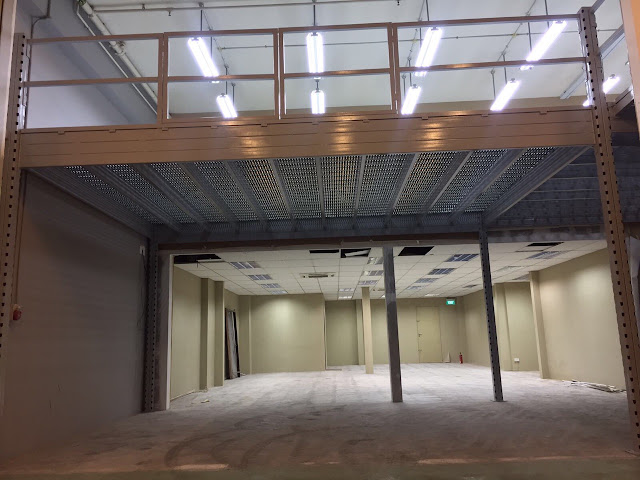

IA Racking Superblock Racking System is a Modular Large Bay Racking System, it is a standalone system that can easily dismantle, which doesn’t require bolting to the ground and walls or welding.
It is a cost effective space saver system that will double up your warehouse space for a minimal cost.
Dimensions of Superblock Mezzanine
Materials – High Tensile Steel
Column Sizes
1) 115 x 115 x 3Thk
2) 125 x 130 x 3Thk
Main Beam
1) 375 x 50 x 3Thk
2) 280 x 50 x 1.8Thk
Secondary Beam
1) 100 x 50 x 2.3Thk
2) 125 x 50 x 3Thk
3) 200 x 50 x 2.3Thk
Base Plate
1) 200 x 200 x 12mmThk
2) 250 x 250 x 12mm Thk
Decking Options:
1) Plywood
2) Metal Planks
3) Grating
FEATURES of Superblock Mezzanine
4 way connection system - Adjustable floor height every 100mm - No bolt and screw - Loading up to 1 Ton
Advantages of Superblock Mezzanine
- Can double up your warehouse space
- Mezzanines are always custom-made, manufactured from detailed drawings and tailored according to your needs and specifications
- The addition of a single multi-layered mezzanine floor can accommodate conveyor systems, whilst other floors can be used to store, manage and dispatch products
- Mobility for Bulky Storage
- Super fast installation & dismantling
- Cost effective for a lease unit
- Customizable Dimension
- Office below the structure is approved by authorities
- With GFA (Gross Floor Area) exemption
- Singapore Fire Safety Compliance
